Trying to embed the date into the log file windows 11

Help and Support
21

that does not look correct:

  • not using the vss snapshot for the source?
  • the rclone command needs to go inside exec.cmd

that does not look correct.

22

What should it be? Can you guess how long it should take to backup 380 GB of pictures? I have one that is running 12 hours +, and it has done the backup before. When I was running with the GUI it didn't take any where near that long. It does 50 GB of docs in about an hour, so it should take 7 to 8 hours to do 380 GB.

23

exactly as i outlined up above.
https://forum.rclone.org/t/trying-to-embed-the-date-into-the-log-file-windows-11/51284/7?u=asdffdsa

what GUI?

to test the vss snapshot, use a small folder

24

The rclone gui.

25

sorry, never used it. it is been labeled experimental since it was first introduced and has not been updated in many years.
in any event, most questions can be answered by reading the rclone debug log.

26

So which file do I run from the scheduler, vs.cmd or exec.cmd, and how does exec.cmd know to look in vs.cmd for vshadow.exe?

27

vs.cmd

the other way around.

  1. vs.cmd executes vshadow.exe
  2. vshadow.exe creates the snapshot
  3. vshadow.exe creates setvars.cmd
  4. vshadow.exe executes exec.cmd
  5. exec.cmd loads setvars.cmd
  6. exec.cmd executes rclone.exe or whatever program(s)

i think the missing link is the contents of setvars.cmd
note: exec.cmd get %shadow_device_1% from setvars.cmd

here is an example of setvars.cmd

@echo.
@echo [This script is generated by VSHADOW.EXE for the shadow set {136ab646-dc58-45c3-b704-1db0f70d5fdf}]
@echo.

SET SHADOW_SET_ID={136ab646-dc58-45c3-b704-1db0f70d5fdf}
SET SHADOW_ID_1={9a39e590-169f-4291-bee3-c6b85f98f1d2}
SET SHADOW_DEVICE_1=\\?\GLOBALROOT\Device\HarddiskVolumeShadowCopy154

note: SHADOW_SET_ID can found from vshadow.exe -q

 SNAPSHOT ID = {9a39e590-169f-4291-bee3-c6b85f98f1d2} ...
   - Shadow copy Set: {136ab646-dc58-45c3-b704-1db0f70d5fdf}
   - Original count of shadow copies = 1
   - Original Volume name: \\?\Volume{49f7c0ee-485f-4a7f-85be-f5a55b15851a}\ [C:\]
   - Creation Time: 5/25/2025 5:29:50 PM
   - Shadow copy device name: \\?\GLOBALROOT\Device\HarddiskVolumeShadowCopy154
   - Originating machine: EN10
   - Service machine: EN10
   - Not Exposed
   - Provider id: {b5946137-7b9f-4925-af80-51abd60b20d5}
   - Attributes:  Auto_Release No_Writers Differential
28

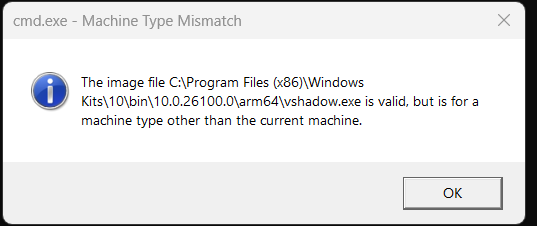

The latest complication in my debugging I ran vs.cmd with a pause command inserted for debugging purposes and I received a response that

image537×226 8.61 KB

. I am trying my best to follow the logic but I am not picking it up. It is not worth the effort. I thank you for your time and effort.

MrSpock

29

yeah, it is convoluted.

well, windows runs on several types of CPU.

in your case, from rclone version, your cpu type is amd64, not arm64

30

How would I go about updating the cpu version? Would updating that increase the speed that it runs at? It seems to take a while to do 380 GB of pictures, with minimal updating between runs.

31

find the correct executable for your cpu architecture - os/arch: amd64

no need to install the entire 4GB SDK, no need to run WinSDKSetup.exe installer.

  1. extract the .iso into a folder
  2. run Windows SDK Desktop Tools x64-x86_en-us.msi which is just 0.5MB.
  3. c:\Program Files (x86)\Windows Kits\10\bin\10.0.26100.0\x64\vshadow.exe

in most cases, the answers are in the debug log.
no idea, what version of rclone, what command, no debug log, no internet speed test, ...

mapped drive? how are you mapping, and why map at all, instead of direct copy to pcloud?

32

I have two backups thats I use, OneDrive and Pcloud. The PCloud is mapped as a network drive. I would like to map oneDrive as a network drive but have not been able to figure out how to map it as a network drive. I tried microsoft tech support but their response is that OneDrive contents is available already. I had OneDrive mapped to the C Drive but that took up space, so I removed the oneDrive mapping and used the RClone Config to so it would be available to RClone. At least RClone has an option through RClone config.

33

so you can access rclone mount drive over the LAN or what?

34

When I access Pcloud I access it as a network drive, and when I do oneDrive I access it it as a remote drive.

Mike

35

trying to understand what you need help with?

36

I know the process for the log file naming, will follow through with that on my own. If I understand how RClone works if I back up the same material to OneDrive it should take approximately the same amount of time to back it up to OneCloud. So now it is fine tuning my process.

One item that I don't understand in looking through the log file a common note I am finding is "Need to transfer - File not found at Destination." I would think that using the copy command should copy it if it is not found on the destination?

Mike

37

correct. two step process.

  1. list files
  2. sync|copy files

i was asking about that, what you meant? what you need?

38

Would you have any idea how to go about mapping OneDrive as a network drive? This would make accessing the material for general purposes much easier. The changes for doing an rclone backup are insignificant, minor syntax change. If you don't know how to map it as a network drive, then I understand, and I can find out the other questions I have by reading the manual. Thank you for your time.

Mike

39

this uses windows built-in networking to share the rclone mountpoint.

on the server

set root=b:\rclone
rclone mount remote: %root%\remote
net share share=%root%

on the clients

net use z: \\server\share\remote
40

I have the backup running reliably every other night, one night to OneDrive, and the next night to PCloud. I started taking a look at the VSS and I am confused about the symbolic link, and the SetVars.cmd
The code:

rem Load the the variables created by vshadow.exe
call setvars.cmd

rem Create the symbolic link to the snapshot (the backslash after shadow_device_1 is important!)
mklink /d c:\snapshot\ %shadow_device_1%\

rem Execute rclone with the source as c:\snapshot\data\, not c:\data\
rclone sync c:\snapshot\data\ remote:data

rem Delete the symbolic link
rmdir c:\snapshot\
  1. Does the setvars.cmd need the path to the setvars.cmd file?
  2. When the mklink executes when executing wouldn't the /d be referenced instead of the c:\snapshot? And then when using the rmdir this would be deleting the original data?

Mike
